long life nickel cadmium Ni-CD storage battery 100Ah for engine starting

FOB Reference Price:Get Latest Price
  • 10 - 49 Pieces
    US $135.00
  • >=50 Pieces
    US $132.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
Hengming
Model Number:
GNC100
Usage:
AGV; starting power; operating power of electrical system; etc.
Voltage:
1.2v
Sealed Type:
open type
Maintenance Type:
General
Size:
138*61*266mm
Weight:
4.3Kg
Nominal Capacity:
1.2V
Nominal Voltage:
1.2V
Capacity:
100Ah
Capacity affected by temperature 20℃:
≥100%
Capacity affected bytemperature -18℃:
≥80%
Self-discharge (20℃)3 month:
<30%
Nominal operating temperature:
20℃±5℃
Operating temperature range:
-20℃~45℃
Float charging voltage(20℃):
1.38V
Maximum charging current:
20A
Product name:
long life Ni-Cd battery
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Resistant seaworthy and standard export plywood case
Port
Qingdao/Tianjin/Shanghai
Lead Time :
Shipped in 25 days after payment
Video Description

long life nickel cadmium Ni-CD storage battery 100Ah for engine starting

Product Description

Type: Extra high rate Ni-Cd sintered type battery 1.2V 100Ah

Dimension:   138*61*266mm

Weight:  4.3Kg

Brand: Hengming

Application:AGV,Locomotive, Engine starting

Type list





Technical data



Nominal Voltage

1.2V

Capacity (5HR,20°C)

100Ah

Maxmium

Dimension

Length

138mm

Width

61mm

Height

231mm

Total Height

266mm

Max.Weight

4.3Kg

Capacity affected by temperature (5HR)

20°C

≥100%

-18°C

≥80%

Self-discharge (20°C)

3 month

<30%

Nominal operating temperature

20°C±5°C

Operating temperature range

–20°C~45°C

Float charging voltage(20°C)

1.38V

Standar charging current

20A

Terminal material

Nickel-Clad Steel



Recommended charging voltage for KPX Series:

Float charge :1.38~1.40v/cell

High-rate charge :1.46-1.48v/cell

maintenance free long life  nickel cadmium Ni-CD storage battery 60Ah for locomotive

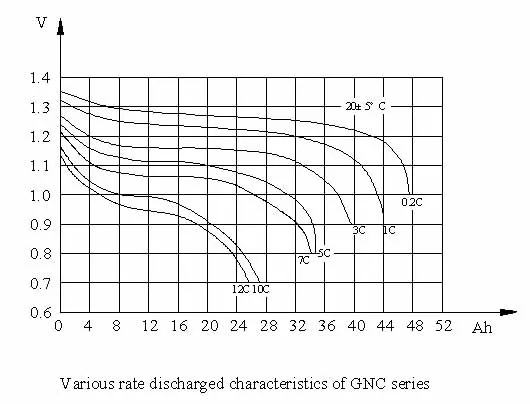

Constant Current Discharge Characteristics (A, 20°C)

F.V/TIME

5h

1.5h

1h

5min

1min

5sec

1sce

1.0V

17.6

54.9

81.9

544

730

854

994

1.05V

17.3

54

78.1

432

566

678

869

1.1V

16.5

53.2

76

354

490

586

734

1.14V

16

52

74

300

396

564

594



Packaging & Shipping

Resistant seaworthy and standard export plywood case

Advantages

1. Excellent charging efficiency and smooth discharge voltage

2.long service life more than 20 years

3. wide operating temperature range from -25 °C to 45°
4.high resistance to mechanical and electrical abuse

5.plastic maerial is produced by our own factory

6.Low maintenance cost and replacement cost.

7.excellent sales man and engineers

8.fastest delivery time

9.30years Ni-Cd manufacture experience

10.top three sales in China NiCd battery field


company infomation

Henan Hengming Fengyun Power Souce Co.,Ltd is professional ni-cd railway storage batteries manufacturer in China and have been in this line for 30 years.

our products have been exported to more than 20 countries, which performance is better and widely used for DC power, back-up power of railway, railway signaling, UPS, boat, Solar home application, boat, engine starting, etc

Hengming have attained the certificates of ISO9001 & ISO14001, and our products are accredited with TUV / CE/ IEC.

We built a new factory to expand our business.

Welcome to visit our new factory.
