68 YEARS !!! engaged in Military Quality Nickel Iron Battery 1.2v 12v 24v 48v TN1000AH with TN1200AH hot selling now

FOB Reference Price:Get Latest Price
US $50-420 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
HENGMING
Model Number:
KPH, KPM, KPL
Nominal Capacity:
10Ah-1200Ah
Usage:
nicad storage battery
Maintenance Type:
Low Rate
Weight:
as catalog
Container:
ABS/PP
Certificate:
IEC60623 /CE/ ISO9001/CRCC
Wide operation temperature range:
-40'C~60'C
Long service life:
15~20 years
Application:
Solar System
Battery type:
NIFE) battery factory
Color:
White / Blue
Voltage:
1.2V 12V 48V, 1.2V
Material:
ABS /PP Containers
Warranty:
24 Months
Size:
as catalog
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard export polywood case /pallet.
Port
Qingdao
Lead Time :
20-35 day after receipt of deposit or l/c.
Product Details

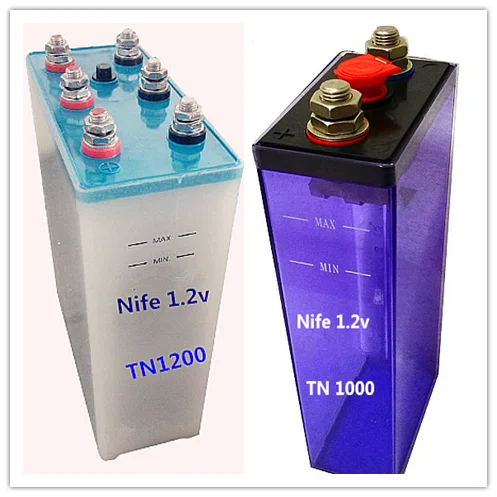

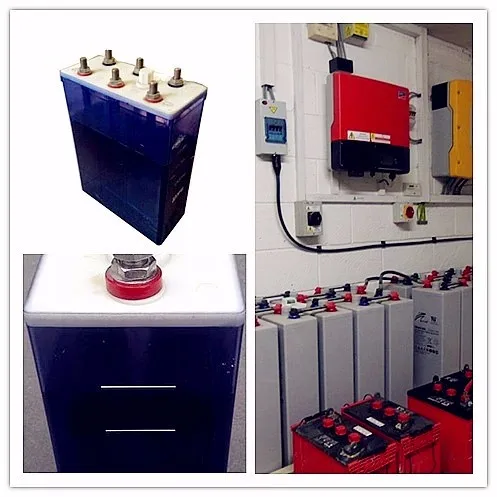

1.2V nickel-iron rechargeable battery
Ni-Fe battery is widely used as DC back-up power supply for railway, rolling stocks, mine tractors, petrochemical, oil and gas, electricity industries, photovoltaic and other renewable power applications.

Nowadays, more and more countries have attached great importance on environmental protection and advocate using green energy. Because of its high reliability, long service life, lower maitenance cost, pollution-free and other characterizes, the Ni-Fe batteries are gradually replacing lead-acid batteries in wide ranges of applications, especially in photovoltaic and renewable energy applications.

Battery System

Hengming Batteries provide professional service for 12v/24v/48v battery bank of nickel iron batteries.

12 Volt Bank(10 cells)

12v battery system are generally constrained to about 2500 watts of input power.


24 Volt Bank(20 cells)

24v battery system is great for off-grid applicationswhere total space is limited.

48 Volt Bank(40 cells)

48v battery system is moden and efficient. Lower cable amperages translate into thineer and cheaper

wire and there are fewer concerns with over-current protection devices.

.

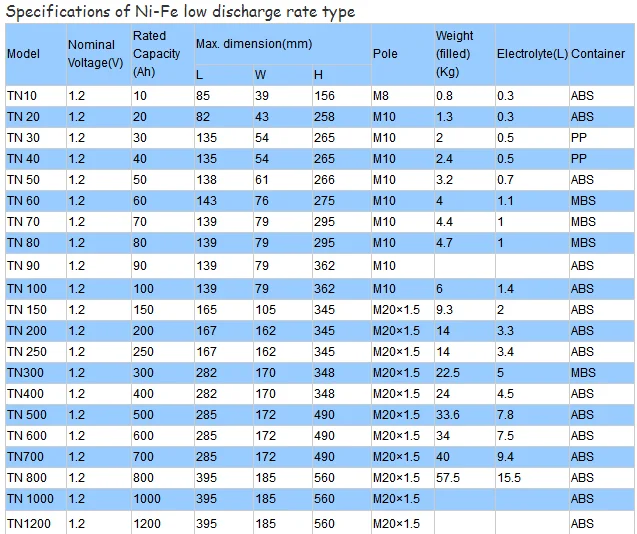

NifeBatteryParameter

Benefits of Pocket plate Ni-Fe Battery
Excellent charging efficiency and smooth discharge voltage
High reliability without sudden death
Ability to withstand ultra-high and ultra-low environmental temperatures
Withstand physical and mechanical abuses

Exceptionally long & reliable service life
Pollution-free,total green energy
low Self-discharging
No emission of corrosive gases, Safe from flame & explosion
Pollution-free and excellent mechanical strength
Convenient for installation and low maintenance
Availability to design and manufacture other model according to user's requirements

Positive Plate
High prosity nickel plated metal belt coating NiOOH
active material. Forming the positive plate by 40ton
pressure. This plate is strong , corrosion resistance,
low internal resistance and not easy off power.

Negative plate
High prosity nickel plated metal belt coated FE3O4
active material. Forming the positive plate by 40ton
pressure. This plate is strong , corrosion resistance,
low internal resistance and not easy off power.

Battery Container
Flame retardant and high strength ABS or PP
material container. Sintered plates with good
strength and shock resistant vibration. It is
easy to watch the level of electrolyte.


Electrolyte


Alkaline KOH or LiOH mixed electrolyte. It is suitable
for high or low temperature.


Terminal
The terminal is made of metal material. There is
electroplated corrosion resistant nickel coating
on surface. The structure is external screw thread.
Nut is six angle flat type. This kind of structure lower
the Ohmic resistance, and make the battery suitable
for different current discharging.

Accessories

Why Choose Us

Because We are responsbility for our customers  and Oversea customer trust our products quality and after-sales service  We are online 24 hours for you !

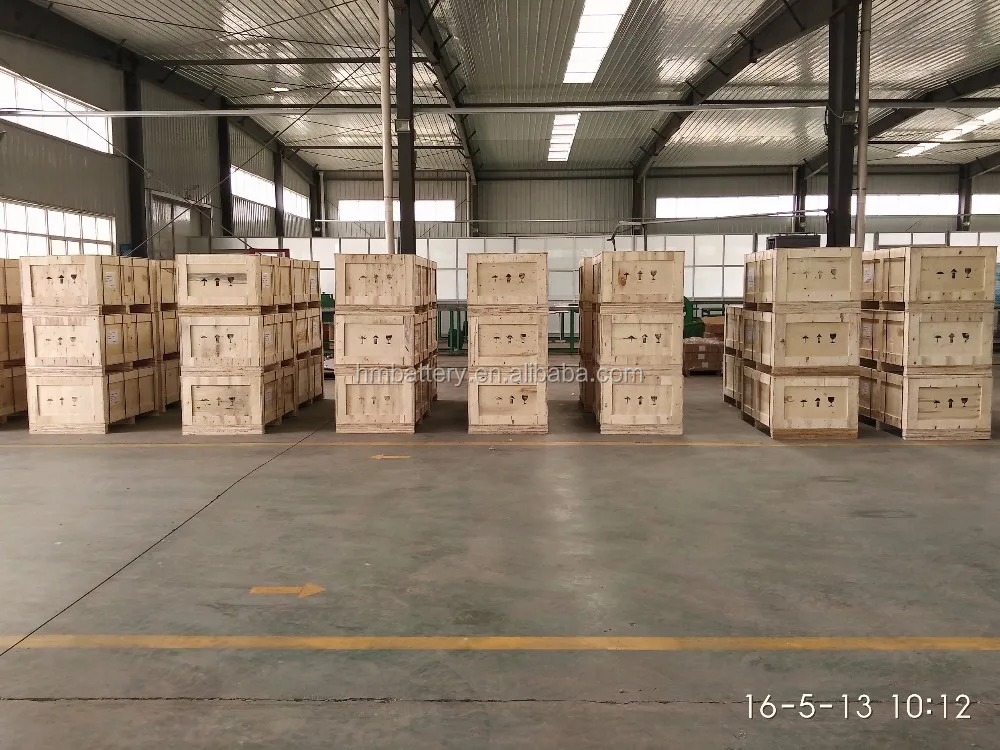

Packing &Shipping

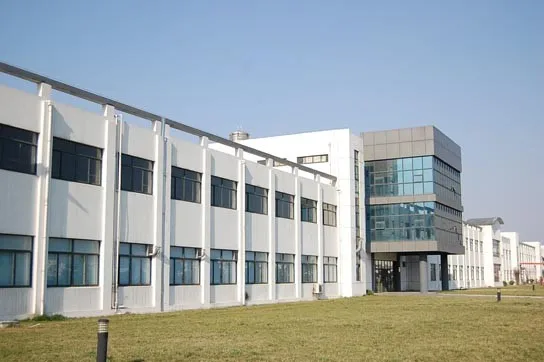

About US

Rely on a 30-year Alkaline battery, NiFe rechargeable battery specialist
Up to 30 million Ah rate yearly | 16,000sqm factory | Nearly 300 technicians

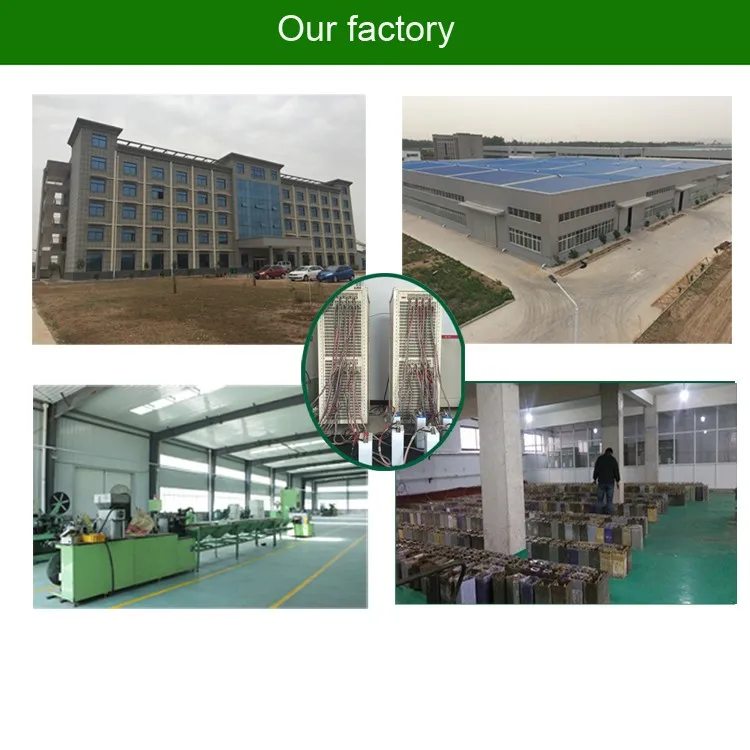

Holding 30 Years of Experience

Hengming Fengyun Power Source is a high-tech company in Henan with more than $10 million in capital 30 years of experience. Our factory covers an area of 16,000 square metersis manned by 280 workers including 10 professional engineers. Hengming-branded products are popular in mainland China.

We are a member of the Chemistry Physics Industry in Alkaline storage battery new Chemistry battery Institute, the China Battery Institutethe standing committee of the Electronic Institute of Henan Province.


Wide Product Range to Choose

We offer alkaline batteries in KPL, KPM, KPH, KPX series. They are widely used in the railway, substation, communication, telecommunications, alarms, UPS, engine starting, Switchgears, emergency back-up power,etc.
We offer nickel iron,ni-fe battery in TN series, They are widely used in Solar energy, solar power system.
